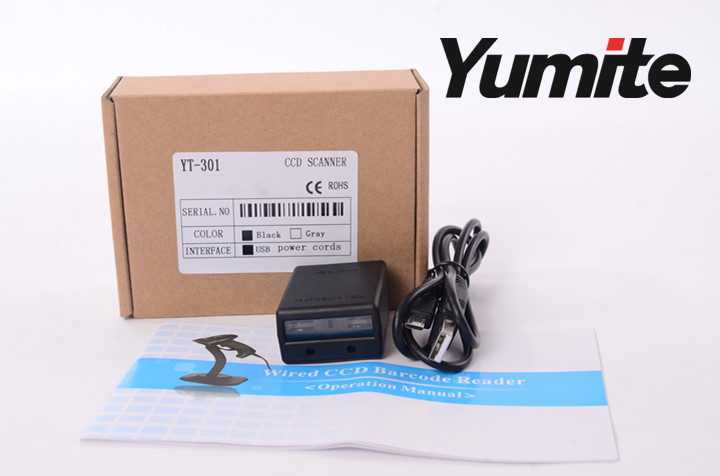

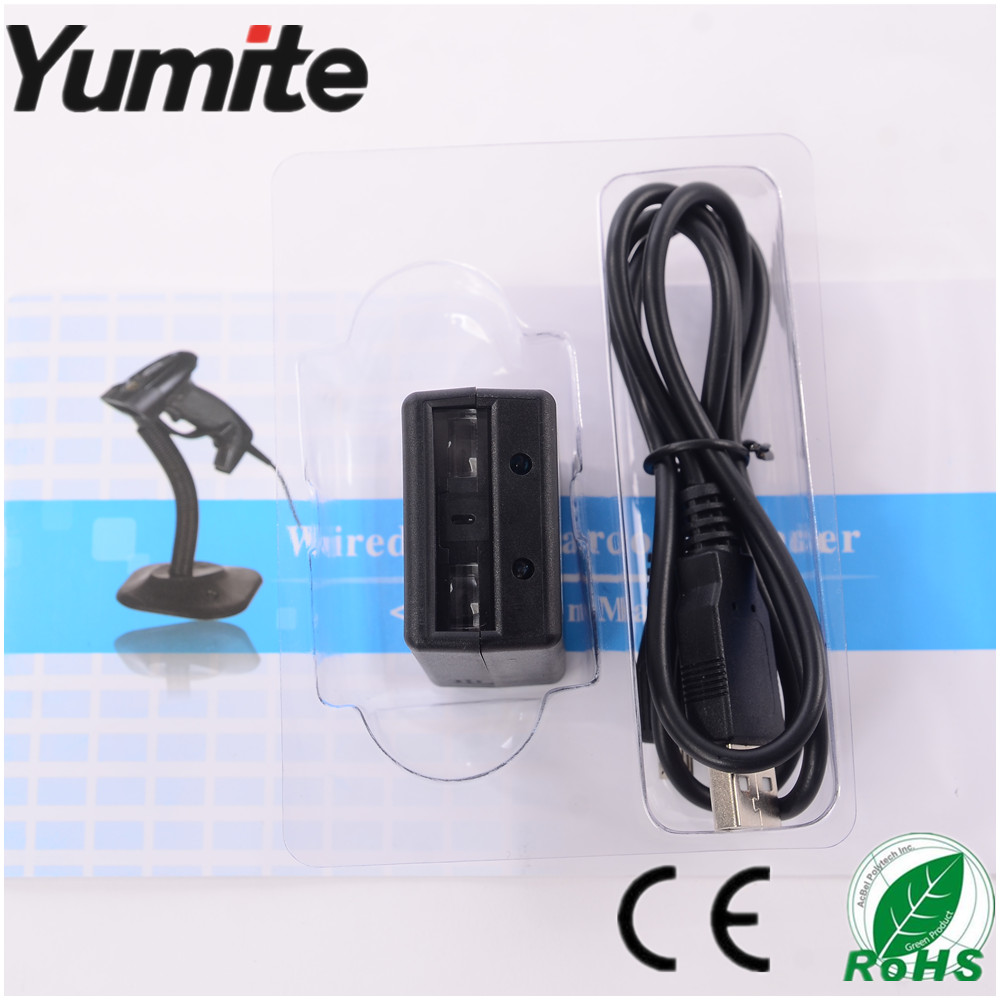

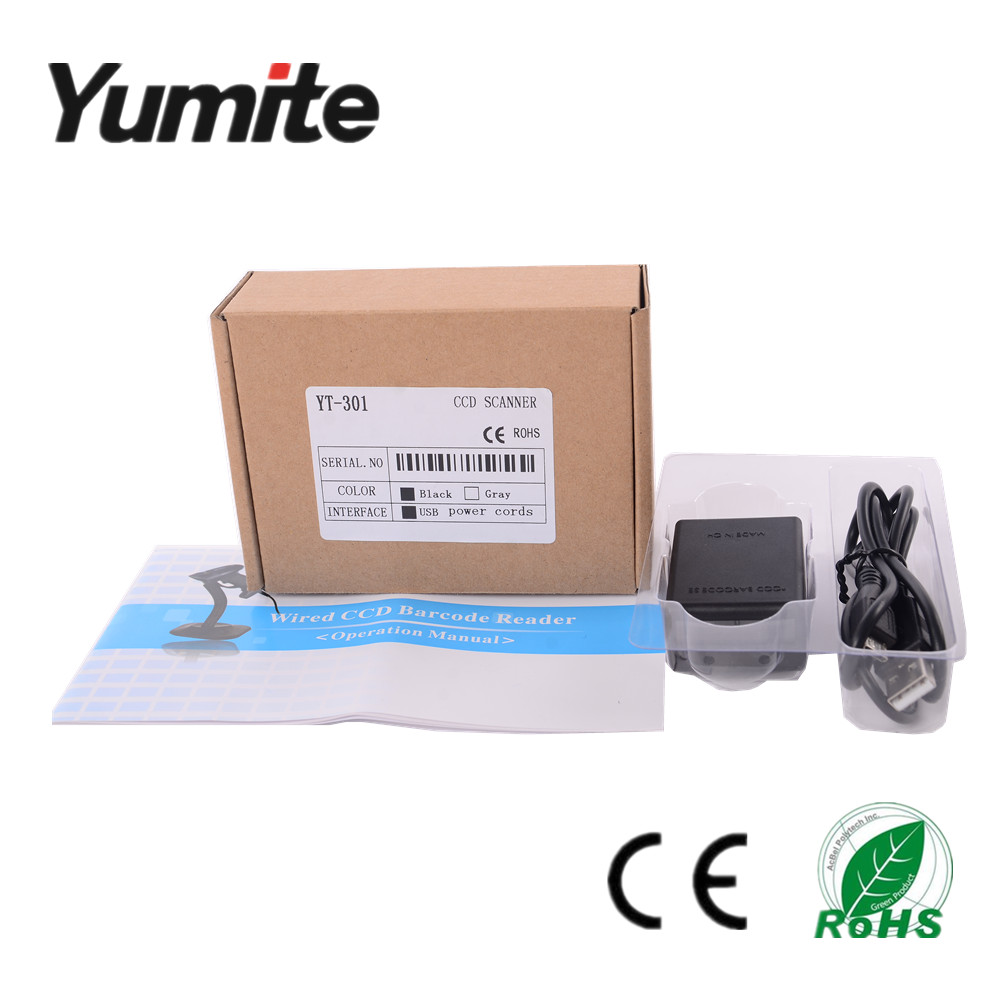

CCD scan engine YT-M301CCD scan engine YT-M301CCD scan engine YT-M301CCD scan engine YT-M301

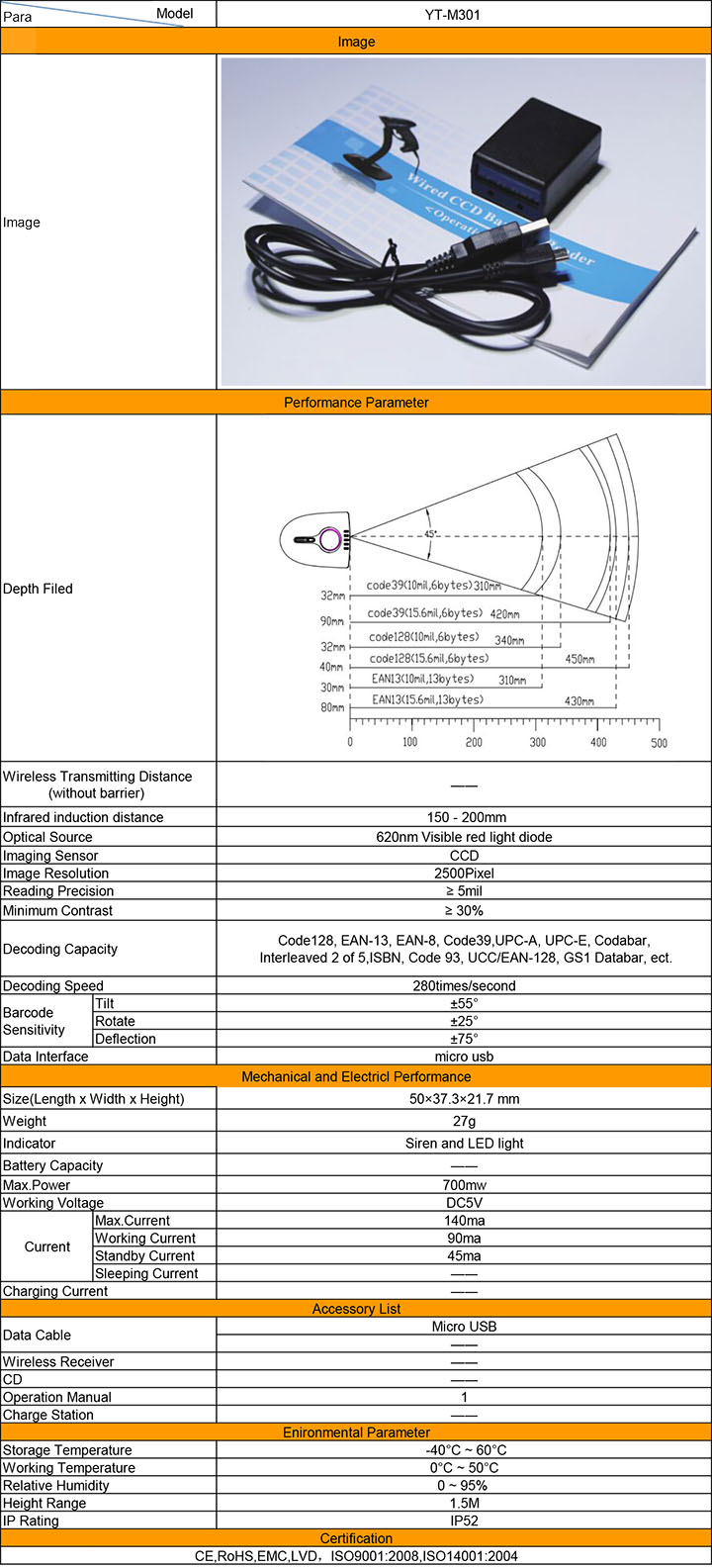

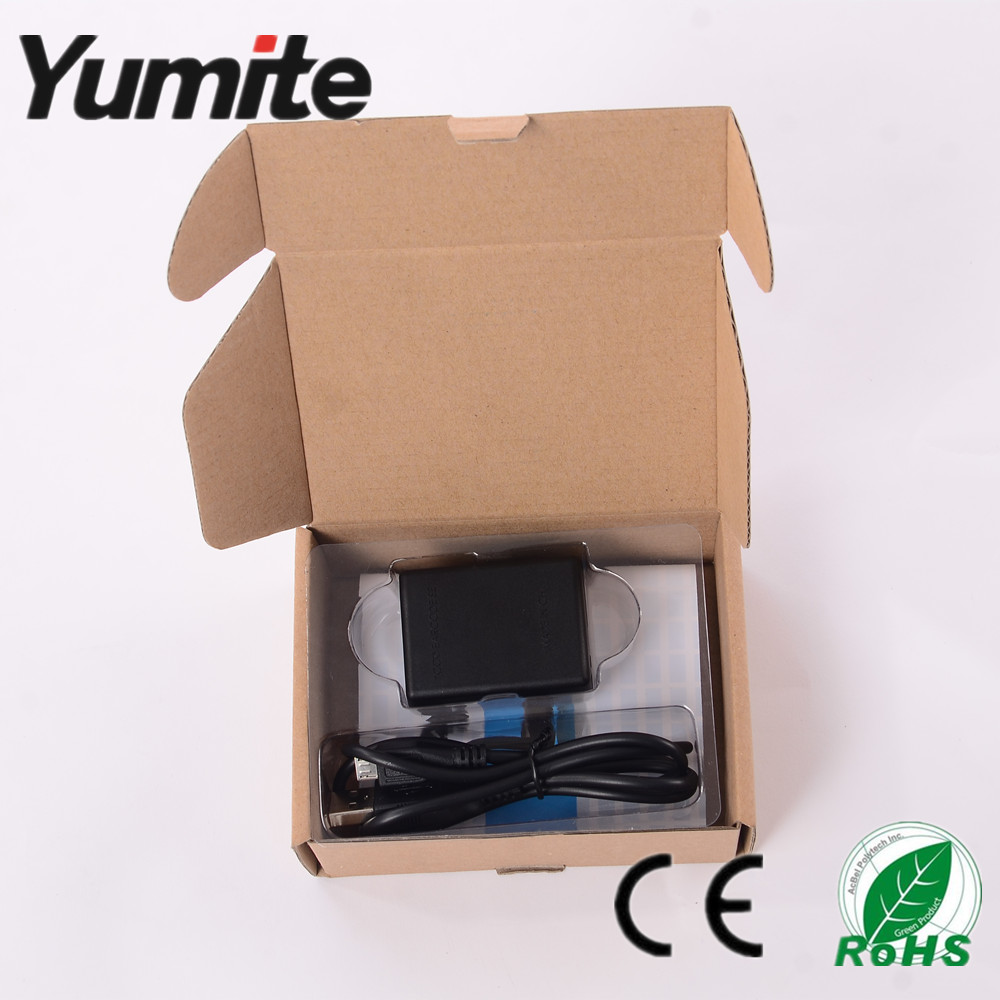

CCD scan engine YT-M301

  • Brand Name: Yumite
  • Model Number: YT-M301
  • Scan Element Type: CCD
  • Optical Source: 650nm Visible red light diode
  • Trigger Mode: Manul
  • Colour Depth: 32 Bit
  • Depth Filed: 6mm-630mm
  • Reading Percision: ≥4mil
  • Decoding Speed: 280times/s
  • Bit error rate: 1/50million
  • Max.Power: 475mw

CCD scan engine YT-M301



The CCD scan engine can decode nearly any kinds of 1D (striped) barcode in your project using this
adorable compact barcode scanner. We've looked all over for a small, light, lowpower scanner module
 that can be easily integrated.This OEM ccd scanner engine can easily integrated into various Kiosks,
ticketing machines, ATM, PDA, POS etc. Or connect with Android/ Iphone to scan directly.


The YT-M301 CCD scan engine is all in one scanner module which is the simplest we could find.
On the end is just a USB cable, plug it into any computer and start to decode within one second.

This QR scanner supports RS232 and USB interface socket. More interface requirements are
negotiable.
