Smallest Scan Engine for Data Collector and Tablet PC ER01Smallest Scan Engine for Data Collector and Tablet PC ER01

Smallest Scan Engine for Data Collector and Tablet PC ER01

  • Products Status: Stock
  • Scan Element Type: CCD
  • Colour Depth: 32 Bit
  • Interface Type: USB, RS232,OTG
  • Place of Origin: Guangdong, China (Mainland)
  • Optical Source: 620nm Visible red light diode
  • Imaging Sensor: CCD
  • Resolution Ratio: 2500 pixel
  • Image Resolution: ≥ 5mil
  • Minimum Contrast: ≥ 30%
  • Decoding Speed: 280times/s
  • Indicator: buzzer and LED light
  • Max.Power: 400mw
  • Working Voltage: DC5V

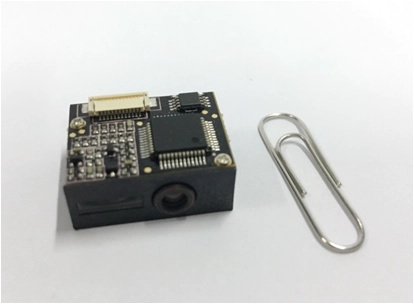

ER01 scan engine

Mini Barcode Scanner is designed for mobile,pc and self-service terminals use.

Support interface customization and easily read longer water/electricity bill barcodes.

Can integrate to PDA as its smallest size 21.3*18*9.4mm.

Drop resistance and able to read screen barcodes.

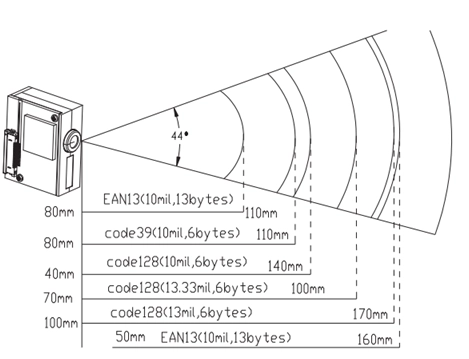

Depth Filed

Optical Source 620nm Visible red light diode
Imaging Sensor CCD
Resolution Ratio 2500 pixel
Image Resolution ≥ 5mil
Minimum Contrast ≥ 30%
Barcode Types Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar,Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc.
Decoding Speed 280times/s
Barcode Sensitivity Tilt ±55°
Rotate ±25°
Deflection ±75°
Data Interface Port FPC flat cable、 separation distance:12*0.5mm
Mechanical and Electric Performance
Size(Length x Width x Height) 21.3*18*9.4mm
Weight (except cable) 3g
Indicator buzzer and LED light
Max.Power 400mw
Working Voltage DC5V
Current  Max.Current 102ma
Working Current 62ma
Stand-by Current 20ma
Sleeping Current —―
Accessory List
Data line RS232 data line
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Test condition:Code 39, 3 Bytes ; The minimum of barcode width=10mil
width to narrow ratio = 2.5:1  ; barcode height = 40mm;Test Distance = 180mm;
Environment Temperature=25℃ ; Environment Illumination= 200 LUX
