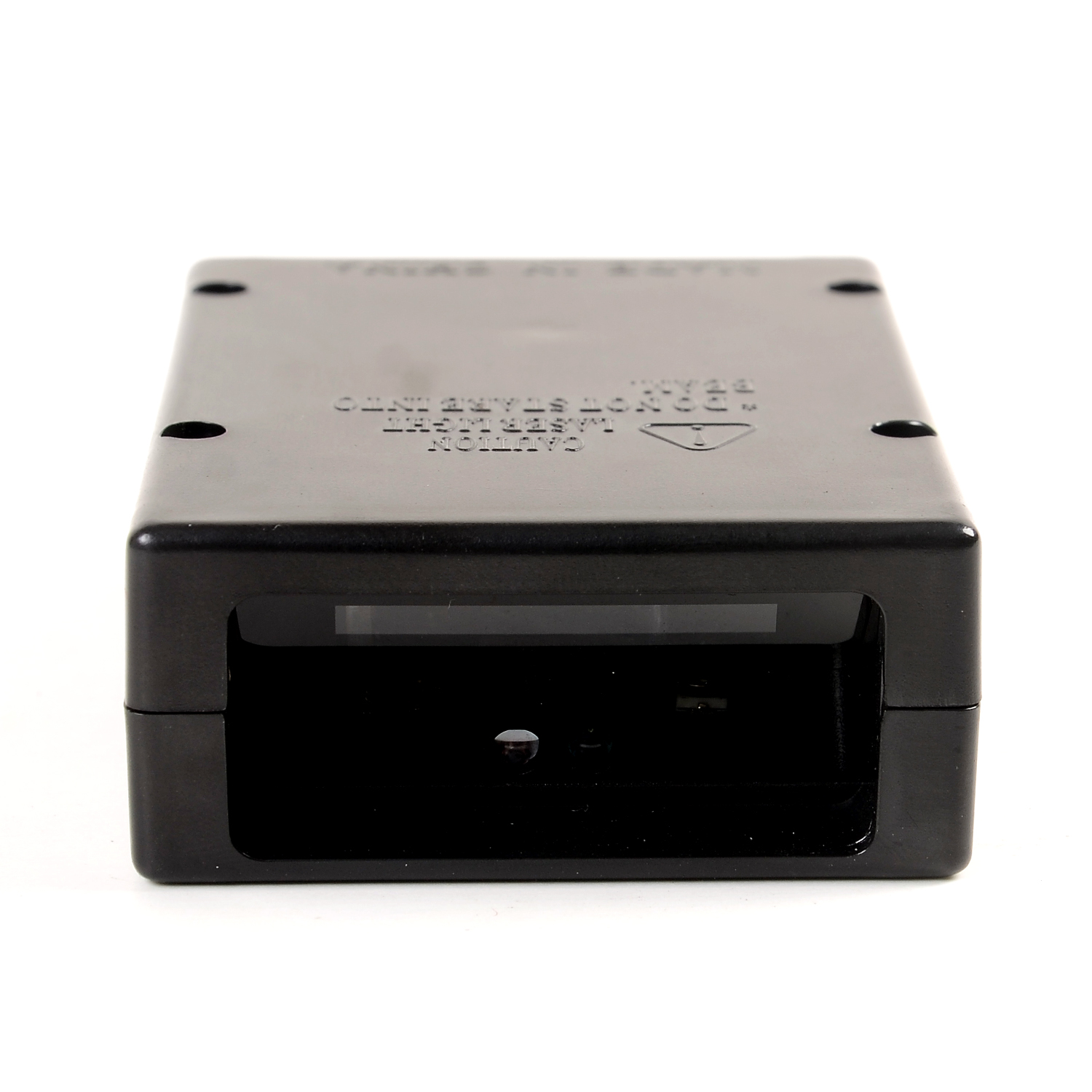

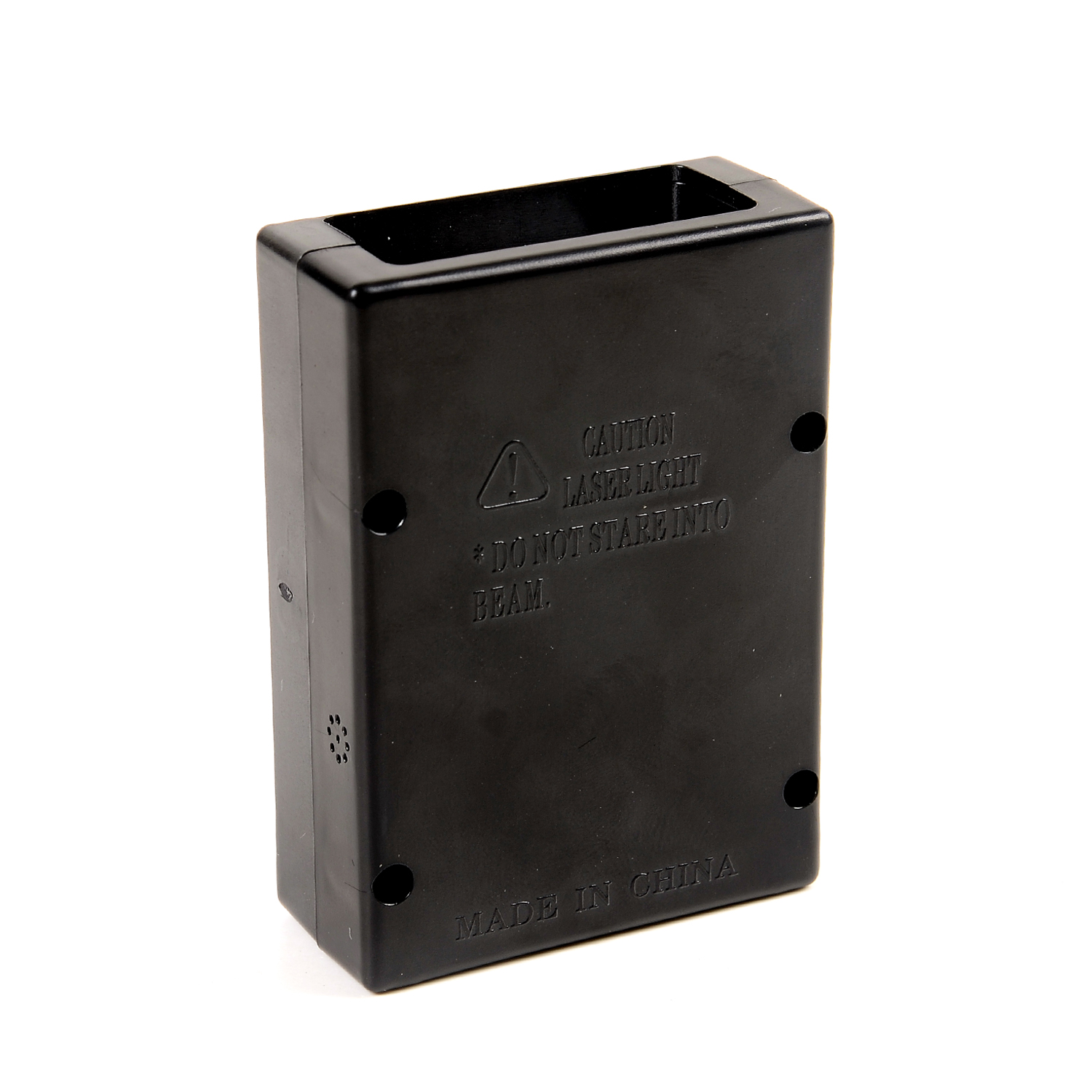

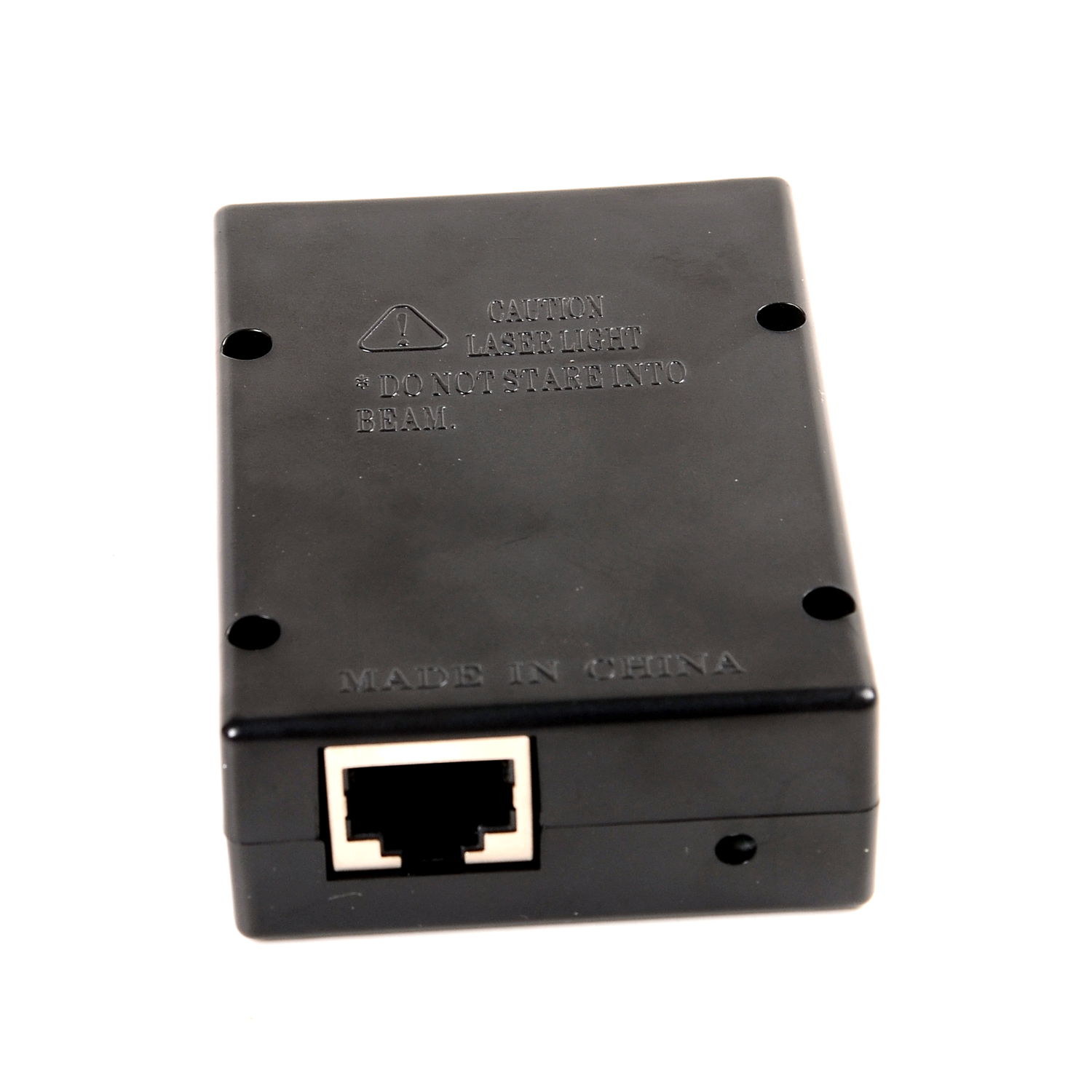

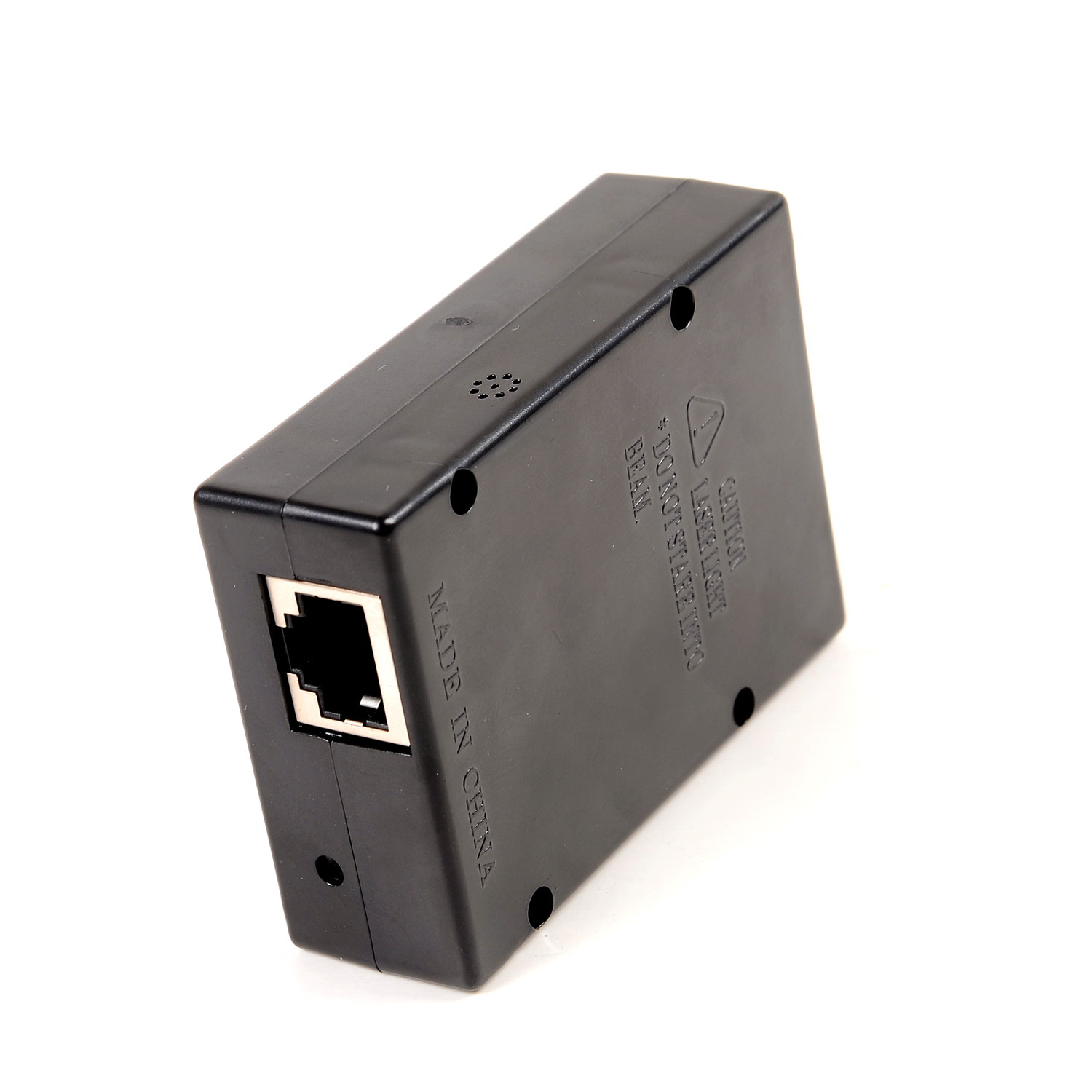

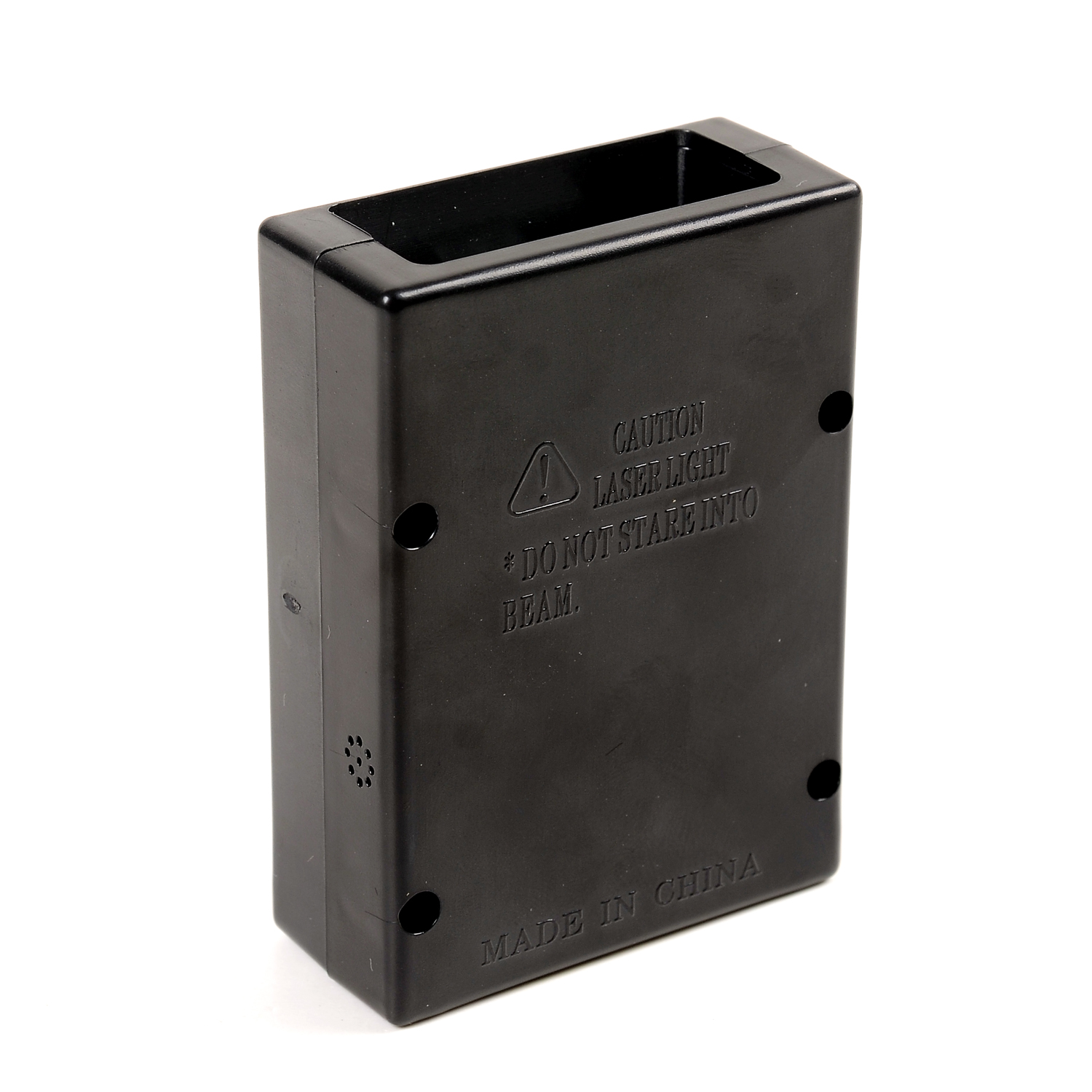

Yumite YT-M200 portable mini barcode scan engine, laser barcode reader module scanner
- Image Resolution: ≥ 4mil
- Type: Barcode Scanner
- Scan Element Type: laser
- Colour Depth: 32 Bit
- Interface Type: USB
- Scan Speed: 100times/s
Yumite YT-M200 portable mini barcode scan engine, laser barcode reader module scanner
Infrared induction distance 150 - 200mm
Optical Source 650nm Visible red light diode
Image Resolution ≥4mil
Minimum Contrast ≥ 30%
Barcode Types "UPC/EAN/JAN,UPC/EAN with supplementals，
UCC/EAN128,Code39,MSI,Code11,Code39 Full ASCll,
Code39 Trioptic, Code128,Code128 Full ASCll Codabar,Code93,
Discrete 2 of 5 IATA,RSSvanrians,Codabar,chinese 2 of 5,Interleaved 2/5,
Interleaved 2 of 5, International general dimensional barcodes。"
Decoding Speed 100times/s
Barcode Sensitivity Tilt ±65°
Rotate ±42°
Deflection ±60°
Data Interface Port USB
Mechanical and Electric Performance
Size(Length x Width x Height) 70.3×50×22.4 mm
Weight (except cable) 51g
Indicator Siren and LED light
Max.Power mw
Working Voltage DC5V
Current Max.Curren 95ma
Working Current 93ma
Stand-by Current 47ma
Charging Current 450ma

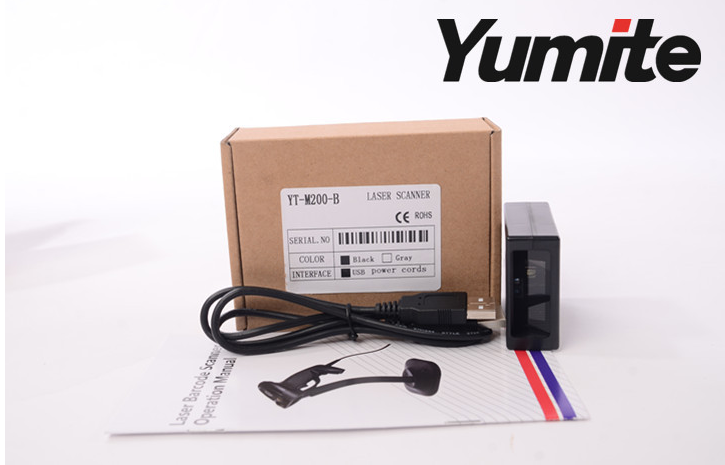

Accessory List
Data line USB data line(1.5m)
micro USB data line(0.8m)
RS232 data line(1.8m)
Operation Manual 1Piece
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Height Range 1.5m
IP Rating IP52

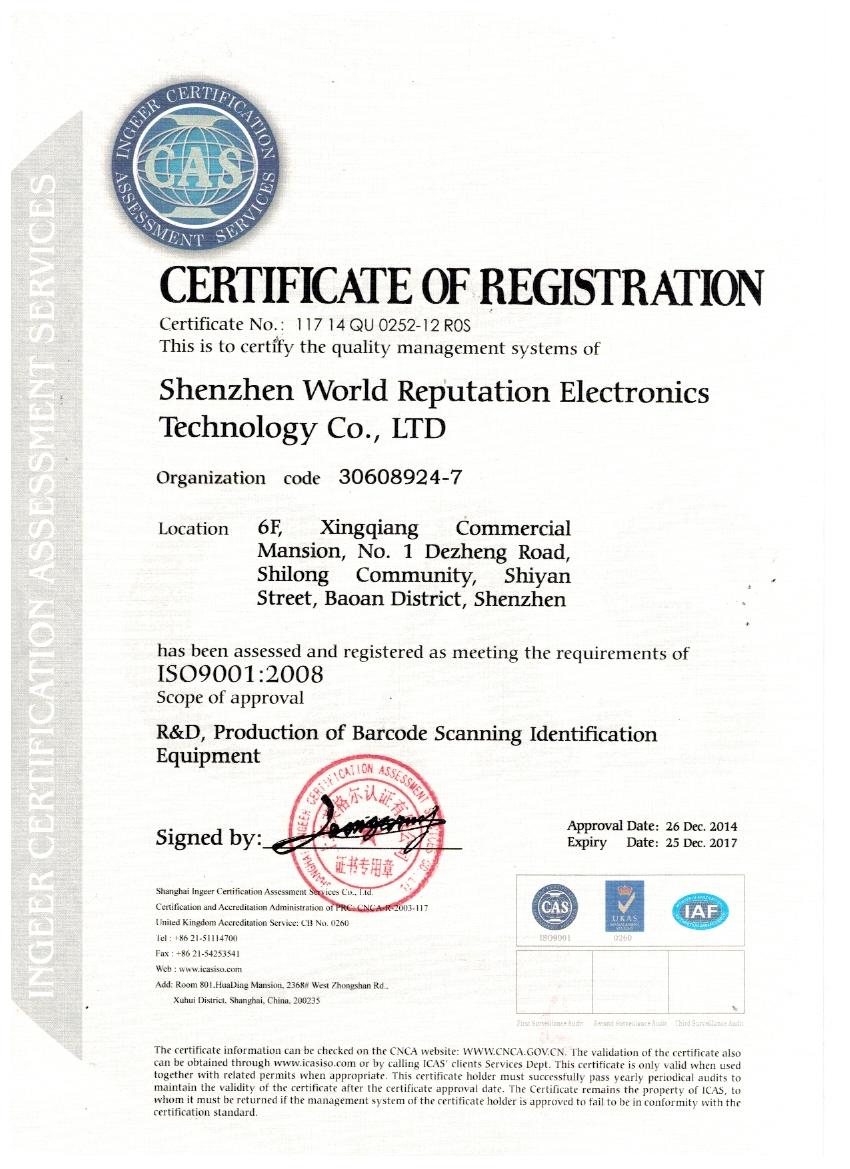

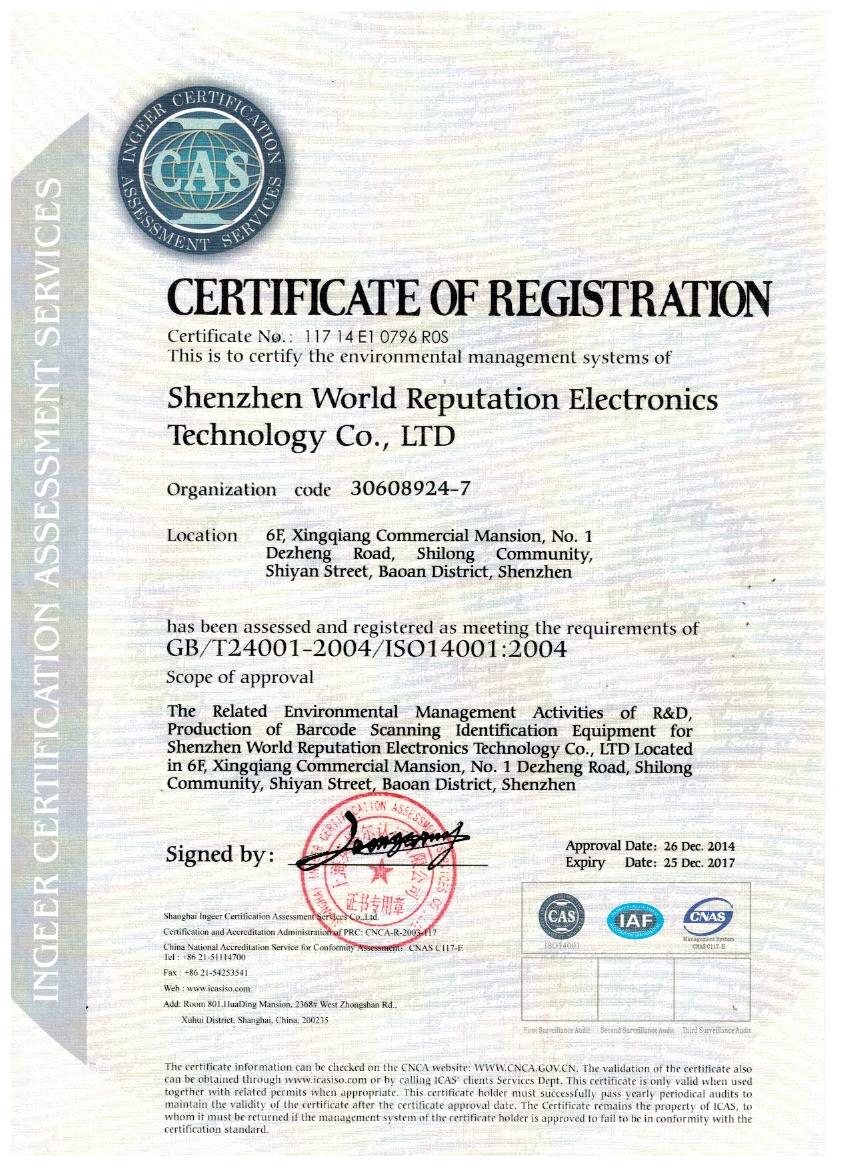

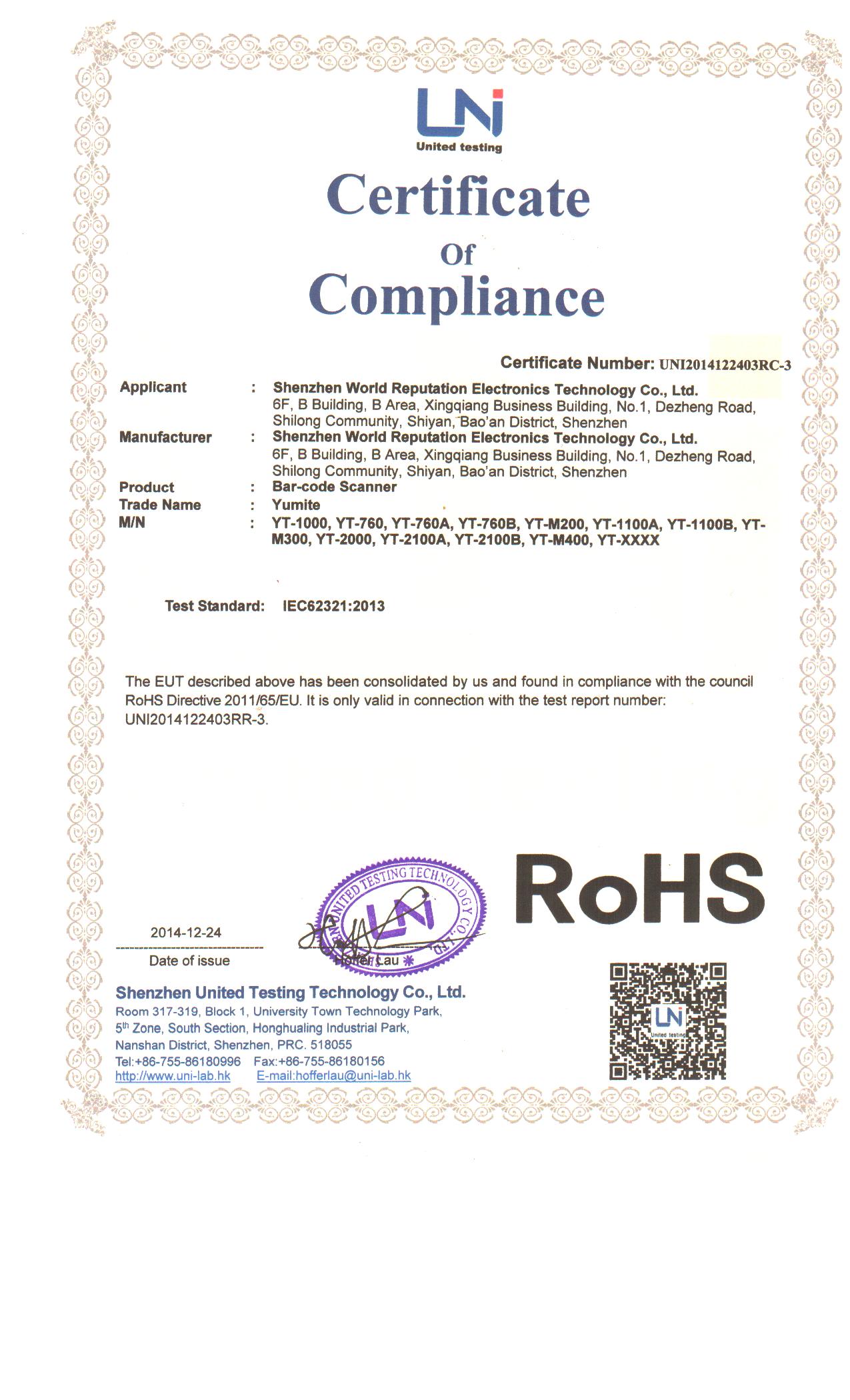

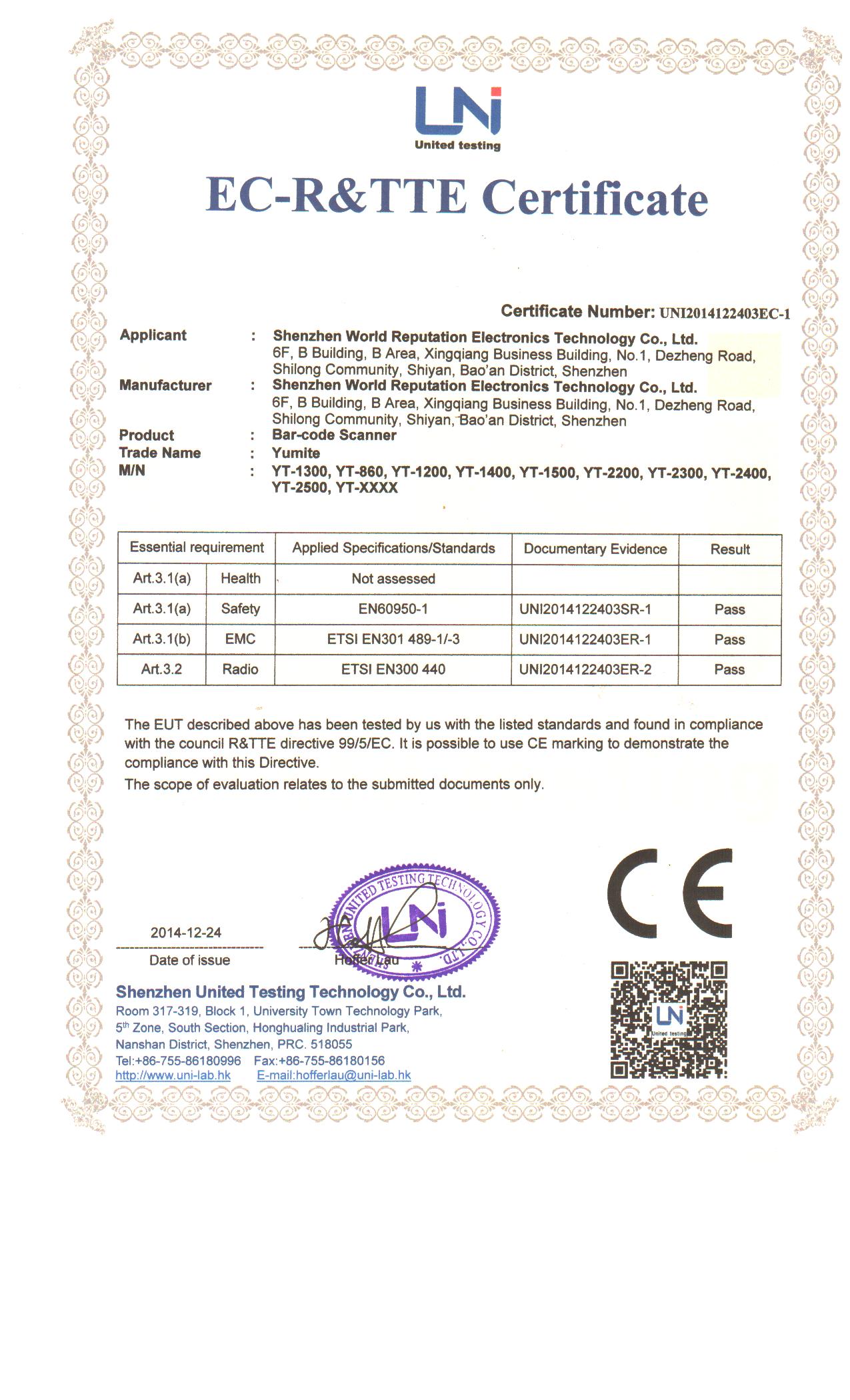

Certificates:
CE,RoHS,EMC,LVD，ISO9001:2008，ISO14001:2004
