ccd barcode scanner head,ccd barcode reader head,mini barcode scanner

ccd barcode scanner head,ccd barcode reader head,mini barcode scanner

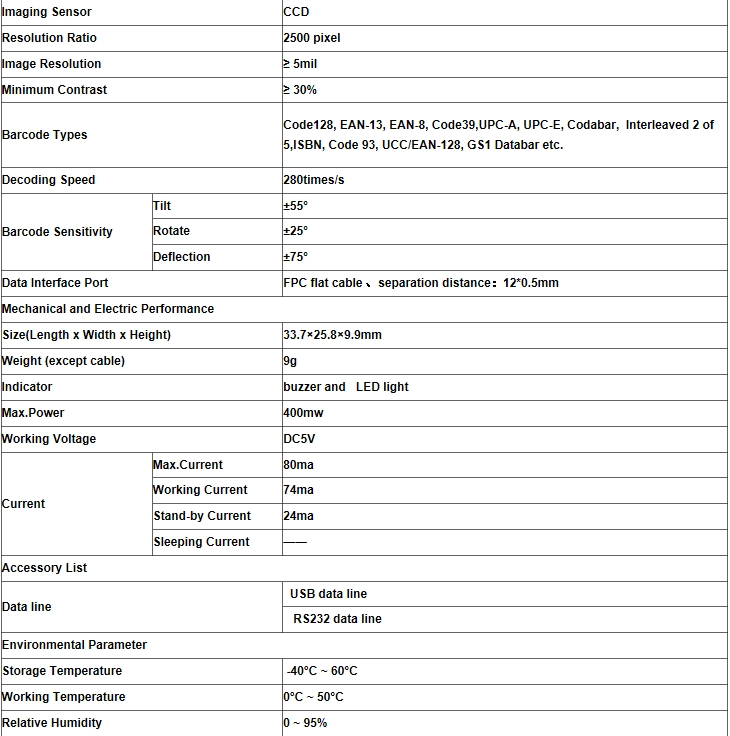

  • Products Status: Stock
  • Scan Element Type: CCD
  • Colour Depth: 32 Bit
  • Interface Type: USB, RS232
  • Place of Origin: Guangdong, China (Mainland)
  • Optical Source: 620nm Visible red light diode
  • Imaging Sensor: CCD
  • Resolution Ratio: 2500 pixel
  • Image Resolution: ≥ 5mil
  • Minimum Contrast: ≥ 30%
  • Decoding Speed: 280times/s
  • Indicator: buzzer and LED light
  • Max.Power: 400mw
  • Working Voltage: DC5V

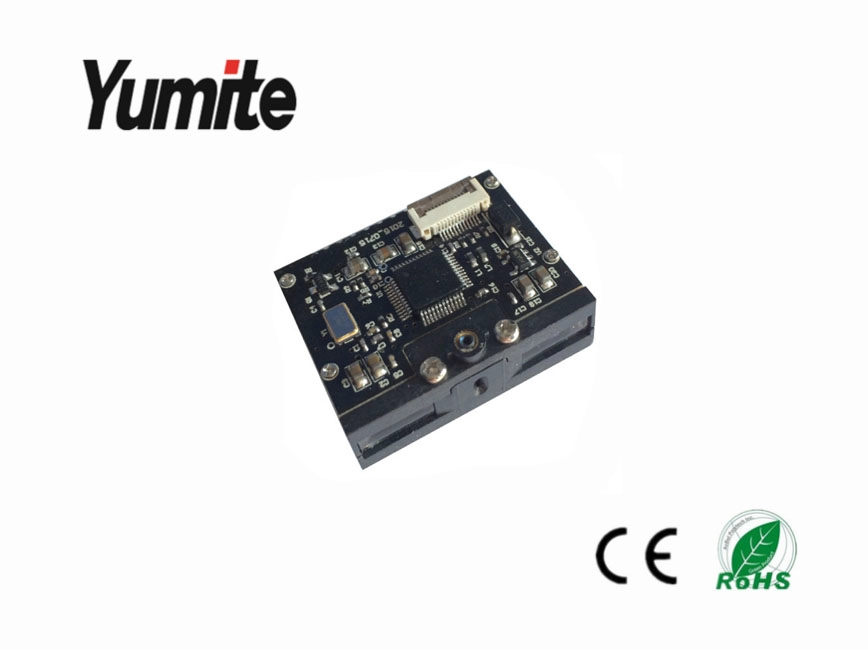

ccd barcode scanner head,ccd barcode reader head,mini barcode scanner ER20 is designed for a handheld barcode scanner or barcode scanner module use.

Support interface customization and easily read all 1d barcode.

Drop resistance and able to read modile and tablet pc barcode.
