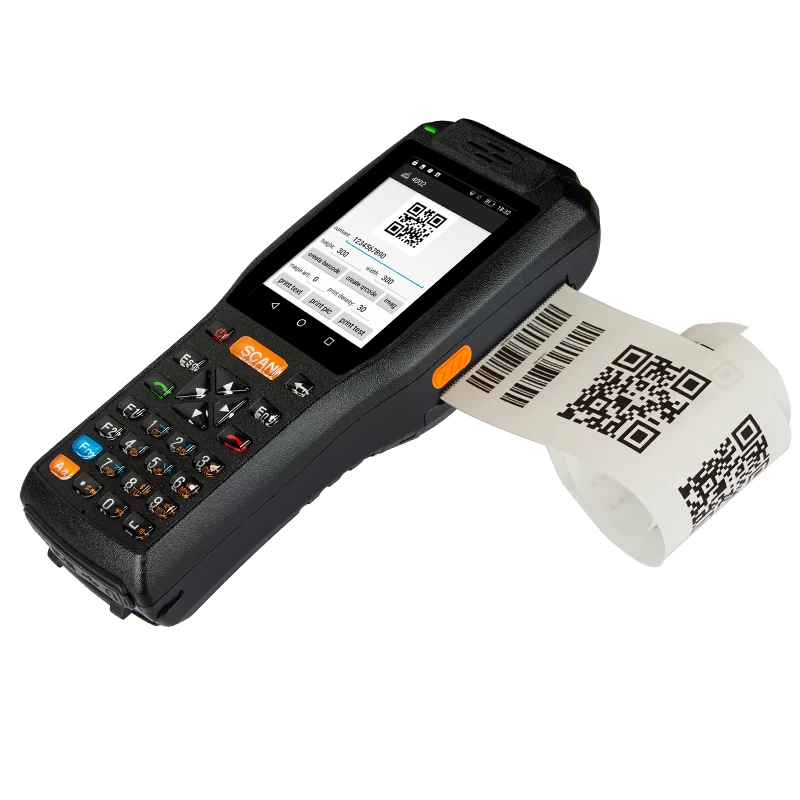

Model:YT-304 4.0 inch Handheld android pos terminal with Barcode Scanner,printer
System Configuration
Processor: 3G Version ARM7 Quad-core1.3GHz
4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz
OS:Android 5.1
Storage: 8GB R0M+1GB RAM(16GBROM+2GBRAM for optional)
Extended Storage:Micro SD(UP to 64G )
Display Standard:3.5 inch HVGA (320 x 480) high-definition screen
Large screen:4.0 inch IPS(480 x 800) high-definition screen
Camera: 5.0M pixels AF with LED light automatic focusing (8.0 M optional)
Touch screen: Industrial capacitive screen
Keyboard: 29 anti-wear, within the light waterproof industrial keyboard
Indicator Vibration indicator / LED indicator / audio indicator
Battery: Built in detachable 7.4v 3400mAh Lithium Polymer Battery
Audio: Built-in microphone / speaker
Sensor: G-sensor
Structural parameters
Size:(LxWxD): 220*85*59mm
Weight: 485g(including battery)
Data communication
Mobile data communication
3G Version: WCDMA:850/900/1900/2100MHz
GSM: 850/900/1800/1900MHz
4G Version: LTE-FDD:B1/B3/B7/B8/B28 E-TDD:B38/B39/B40/B41
CDMA/EVDO 800MHz WCDMA:850/1900/2100MHz
Wi-Fi: IEEE 802.11 b/g/n
Bluetooth Bluetooth: 4.0
GPS High performance: GPS / AGPS navigation chip
Printer
Printing method: Built in line thermal printer
Printing width: 58mm
Print media :Thermal printer and thermal label paper
Sensor Black mark / out of paper / overheat overvoltage protection
Print type: Text/image/bar code/QR code
Using Environmental
Development tools: Android SDK + JDK + Eclipse
Language: Java
Operating: Temperature -10° ~ 50°C
Storage Temperature: -20°~ 70°C
Humidity: 0 to 95% relative humidity (non-condensing)
Drop Specifications: can bear impact from 1.5m drop to cement floor
Electrostatic discharge :± 15kV air discharge, 8kV direct discharge
Protection class: IP65/Explosion-Proof certificate
1D laser scanner
Scanning light: Visible laser diodes with a wavelength of 650 nm
Scanning speed: 100 line/s
Scanning angle: ±50°,±65°(R/L, F/B)
Resolution: 4mil
Decoding type: UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN,39 code,39 code(ASCII code),32 code,Trioptic 39 code,Interleaved 25 code,industry 25 code(Discrete 2 of 5),Matrix 25 code,Codabar(NW7),128 code,UCC/EAN 128,ISBT128,93 code,11 code(USD-8),MSI/Plessey, UK/Plessey, China Postal,GS1 DataBar
2D image scanner
Collection method: CMOS
Scanning speed: 1/60s
Scanning angle: Corner 360°,Elevation angle ± 55°,Declination ± 55°
Resolution QR code≥7.5mil,Bar code≥5mil
Decoding type QR Code, Data Matrix, PDF417,Han letter code in line with international and domestic generic 1Dcode standards:
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar,2D optional Support DPM (component identification code)
NFC/HF RFID/PSAM
Communication ISO/IEC 14443A/B,ISO15693
Working frequency 13.56MHz
Card type Type1-4Tag/Mifare/Felica
PSAM card IS0/IEC 7816 1-4
Contact chip card IS0/IEC 7816(optional)
Fingerprint(optional)
Collection method Capacitance Surface Array Semiconductor Sensor Plane Press
Fingerprint sensor FPC1020
Image size 242*266pixel(effective 192*192pixel)
Image resolution 508dpi
storage capacity 2000pcs
