Wired USB laser barcode scanner new digit decoding technology with faster speed YT-763

  • Brand Name: Yumite
  • Model Number: YT-763
  • Products Status: Stock
  • Type: Barcode Scanner
  • Scan Element Type: laser
  • Colour Depth: 32 Bit
  • Interface Type: USB
  • Scan Speed: 100times/s
  • Optical Source: 650nm Visible laser light diode
  • Image Resolution: ≥4mil
  • Minimum Contrast: ≥ 30%
Wired Handheld Laser Barcode Reader YT-760
picture of YT-760
description about YT-760
Wired USB laser barcode scanner new digit decoding technology with faster speed YT-763  is a wired laser barcode scanner can be used in supermarket, logistic, bookstore, hospital etc.
In a word where there is a barcode there is a wired laser barcode scanner with USB cable scanner can be used.

The scanner is rubberized with solid shell which can be dropped from 2m high place. And it can read UPC/EAN/JAN,UPC/EAN with supple mentals, Discrete 2 of 5 IATA, RSSvanrians, Codabar, chinese 2 of 5,Interleaved 2/5 etc.


Feature

1. A new generation of digital laser technology with faster scanning speed.

2. Powerful error correction capability
3. Soft and hard plastic drop protection
4. Performance comparable to LS2208
specification about YT-760
laser scanner

Light Source Type Visual lasing diode; the wave length is 650mm.
Trigger Mode Manul
Scanning Mode Single-line scanning
Scanning speed 100±2 times /s
Resolution  ≥4mil
Printing Contrast Ratio The lowest reflectivity difference is 30%.
Bit error rate  1/50 million
Input voltage  5VDC±0.25V
Power  250mW (Work): 325mW (momentary maximum)
Current  50mA (Work): 65mA (momentary maximum)
Standby current  <20mA
Light intensity  3000-12000Lux

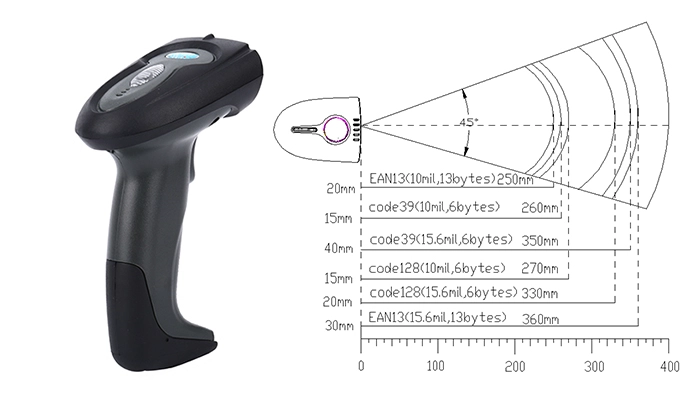

Depth of field  5mm-630mm
Scanning angle  ±60°±65°±42° (Left and right, front and back, rotation)
Decoding capacity UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11
Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII
Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5,
International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5 and China postal service code
Prompt mode  Buzzer and LED indicator
Cable interface  USB (standard): PS/2 and RS232 are selectable.
External dimensions L*W*H: 158mm*68mm*96mm
Weight  170g (excluding cables)
Cable standard  Straight line,1.8m
Interface type  RJ-45 crystal head
Hull material  ABS+PC
Temperature  0℃ to 50℃ (Work): -40℃ to 60℃ (storage)
Setting mode  Manual (scanning and setting barcodes according to the sequence)
Safety Regulations  Laser safety class: EN60825-1, Class 1, state level-I laser safety standard
EMC: EN55022,EN55024
Electrical safety: EN60950-1
Packaging level: IP52
Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times.

certification about YT-760
ISO
RoHs CE
