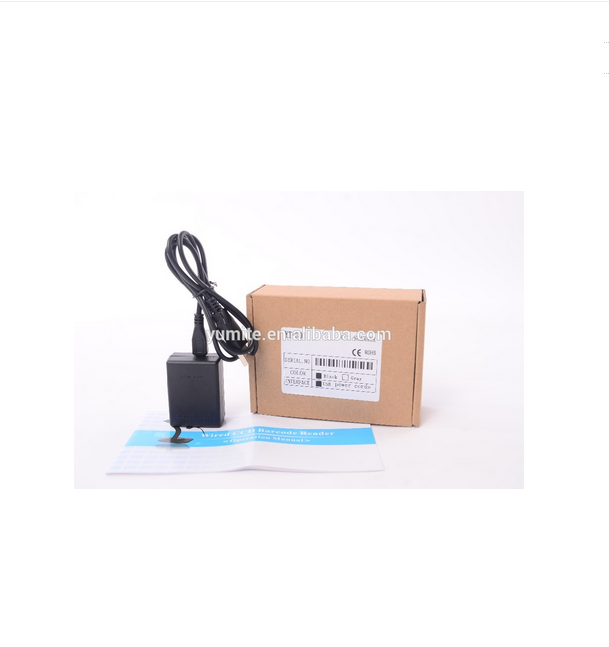

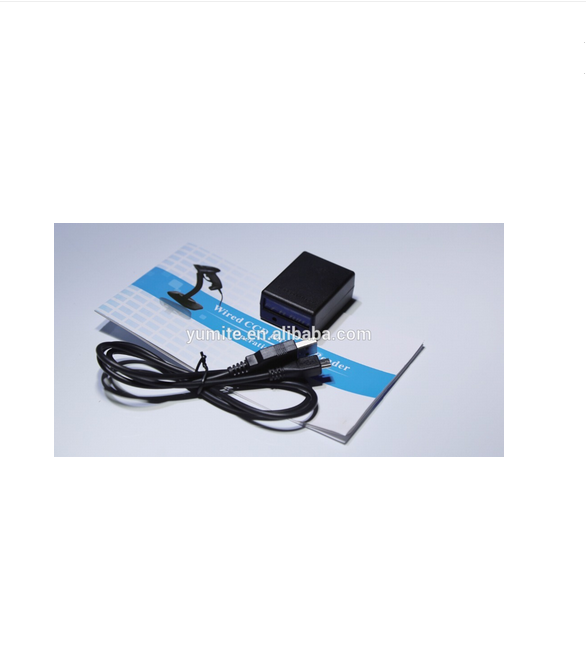

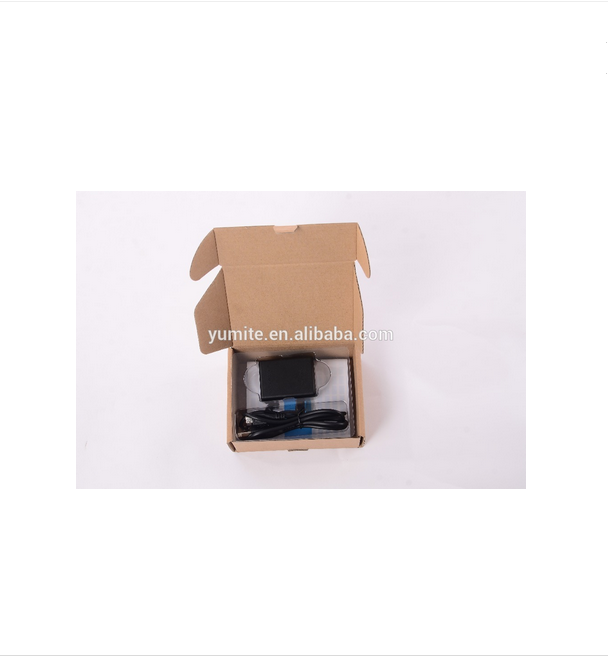

The newest YT-M302 Portable wired 1D CCD barcode scanner with mini usb barcode scanner for android tablet pc
- Model Number:YT-M302
- Products Status:stock
- Scan Element type:CCD
- Colour Depth:32 Bit
- Interface Type:USB
- Scan Speed:280times/s
- Infrared induction distance:150 - 200mm
- Optical Source: 620nm Visible red light
- Resolution Ratio:2500 pixel
- Minimum Contrast:≥ 30%
- Decoding Speed: 280times/second
Wireless Transmitting Distanc (without barrier) —―
Infrared induction distance 150 - 200mm
Optical Source 620nm Visible red light diode
Imaging Sensor CCD
Resolution Ratio 2500 pixel
Image Resolution ≥ 5mil
Minimum Contrast ≥ 30%
Barcode Types "Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar,
Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc."
Decoding Speed 280times/second
Barcode Sensitivity Tilt ±55°
Rotate ±25°
Deflection ±75°
Data Interface Port micro usb
Mechanical and Electric Performance
Size(Length x Width x Height) 50×37.3×21.7 mm
Weight 27g
Indicator Siren and LED light
Max.Power 700mw
Working Voltage DC5V
Current Max.Curren 140ma
Working Current 90ma
Stand-by Current 45ma
Sleeping Current —―//
Accessory List
Data line micro usb data line—―//
Operation Manual 1
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Height Range 1.5M
IP Rating IP52

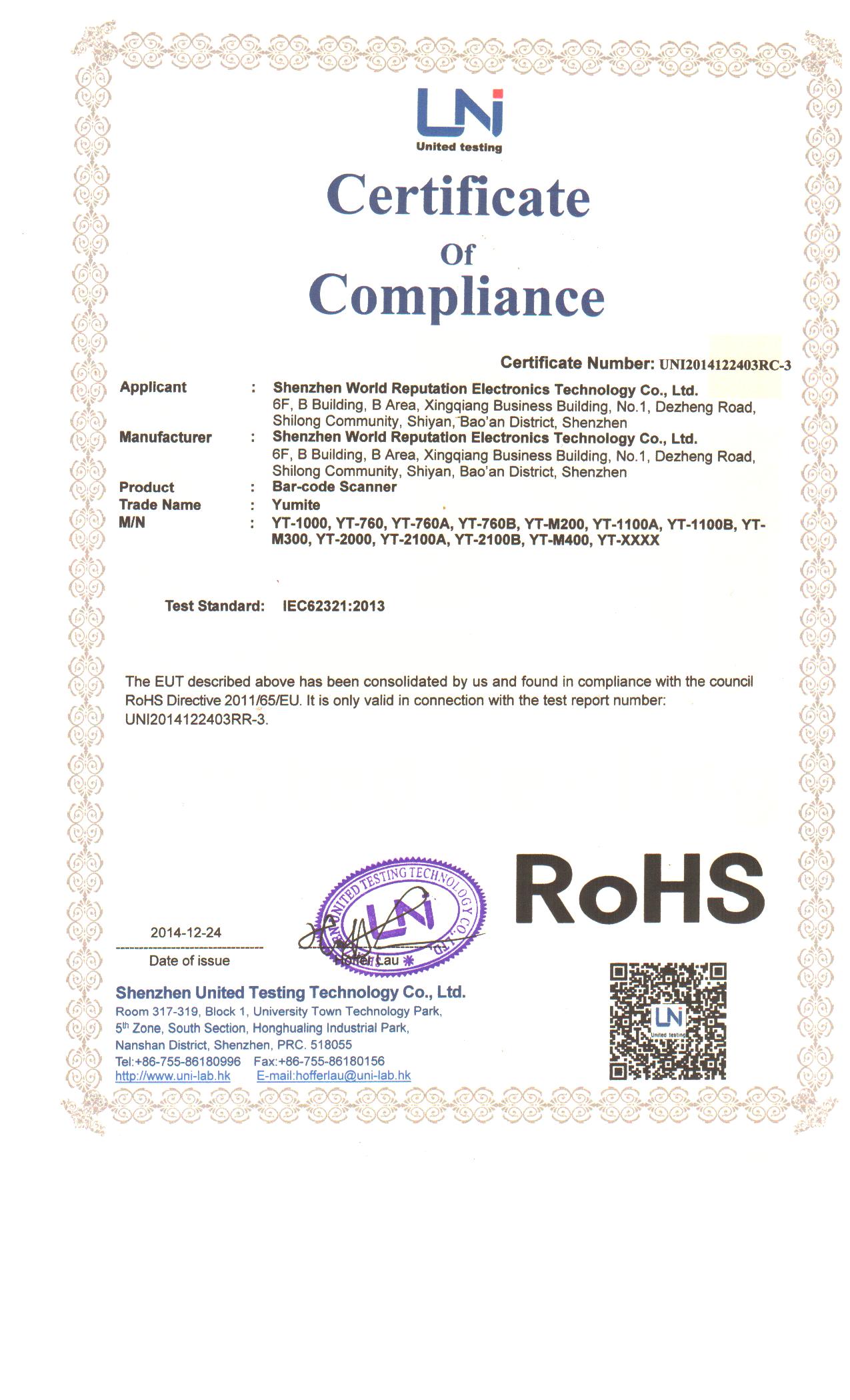

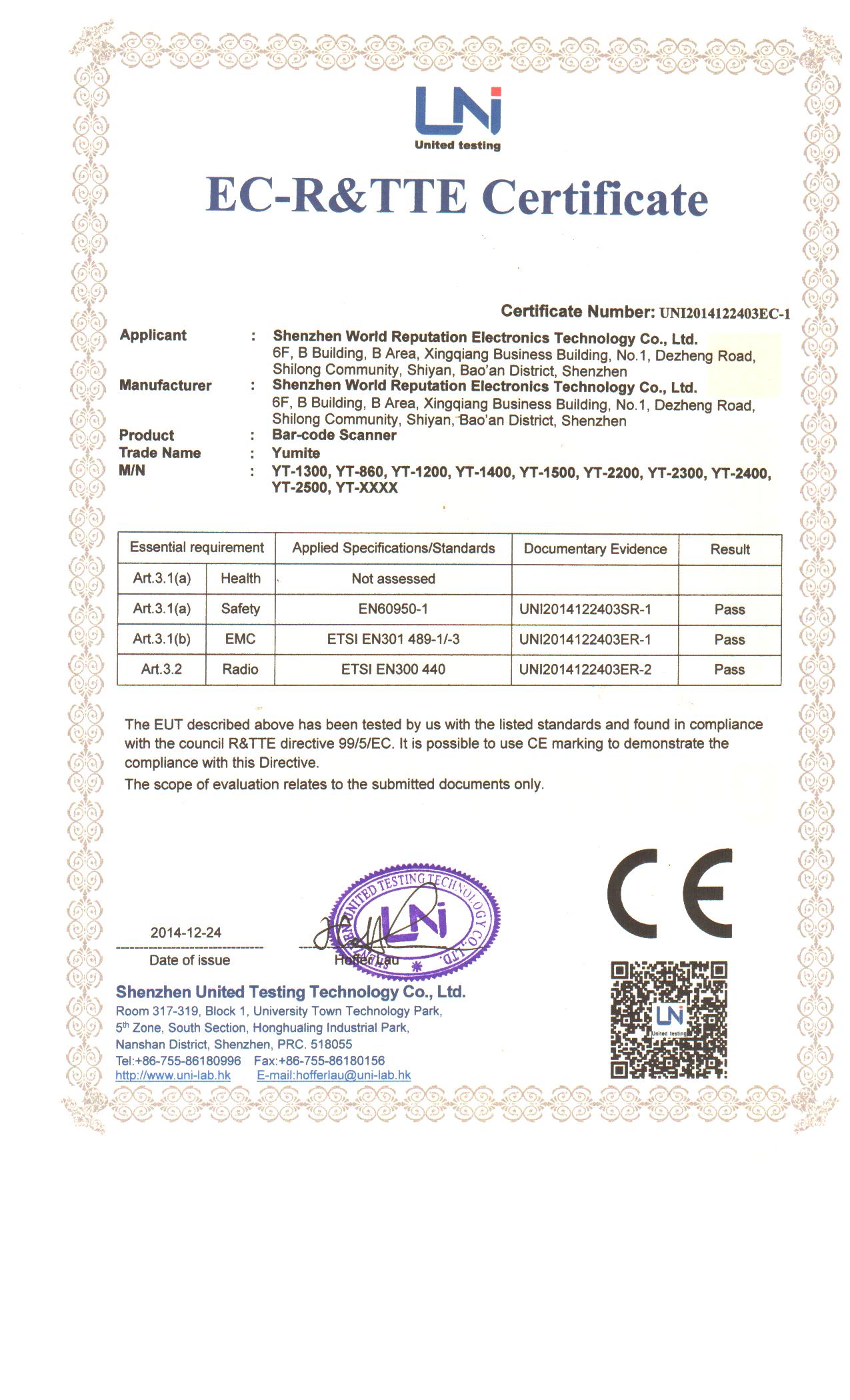

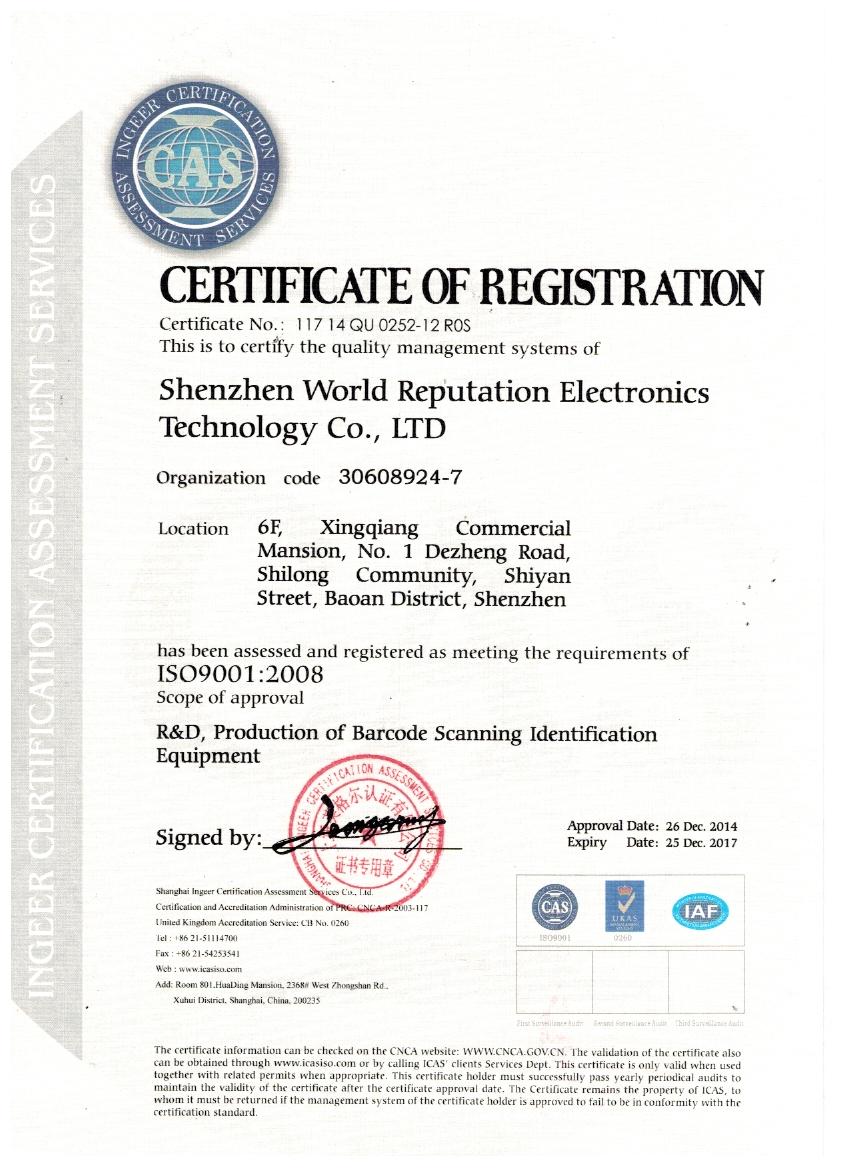

Certificates:
CE,RoHS,EMC,LVD，ISO9001:2008，ISO14001:2004
Infrared induction distance 150 - 200mm
Optical Source 620nm Visible red light diode
Imaging Sensor CCD
Resolution Ratio 2500 pixel
Image Resolution ≥ 5mil
Minimum Contrast ≥ 30%
Barcode Types "Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar,
Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc."
Decoding Speed 280times/second
Barcode Sensitivity Tilt ±55°
Rotate ±25°
Deflection ±75°
Data Interface Port micro usb
Mechanical and Electric Performance
Size(Length x Width x Height) 50×37.3×21.7 mm
Weight 27g
Indicator Siren and LED light
Max.Power 700mw
Working Voltage DC5V
Current Max.Curren 140ma
Working Current 90ma
Stand-by Current 45ma
Sleeping Current —―//
Accessory List
Data line micro usb data line—―//
Operation Manual 1
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Height Range 1.5M
IP Rating IP52
Certificates:
CE,RoHS,EMC,LVD，ISO9001:2008，ISO14001:2004
