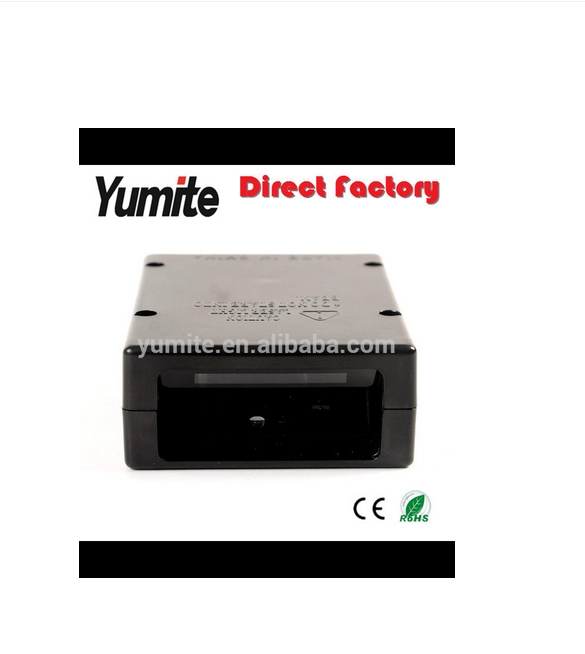

YT-M401 wired 2D barcode scanner module manufacturer android ipad ultrasound scanner

  • Colour Depth: 32 Bit
  • Interface Type: RS232
  • Scan Speed: 300times/s
  • Infrared induction distance: 150 - 200mm
  • Optical Source: 650nm Visible red light diode
  • Resolution Ratio: 752*480
  • Image Resolution: ≥ 5mil
  • Minimum Contrast: ≥ 30%
  • Decoding Speed: 300times/second
  • Data Interface Port: mic usb
  • Scan Element Type: CMOS
Infrared induction distance 150 - 200mm
Optical Source 620nm Visible red light diode
Imaging Sensor CMOS(Image)
Resolution Ratio 752×480
Image Resolution ≥ 5mil
Reading Depth Code 39 40mm -280mm(10mil); 85mm~325mm(15mil)
PDF417 60mm -225mm(10mil); 60mm~340mm(15mil)
Data Matrix 20mm -155mm(10mil); 35mm~235mm(15mil)
QR Code 35mm -150mm(10mil); 20mm~230mm(15mil)
Minimum Contrast ≥ 30%
Barcode Types 2D "PDF417, QR Code(Model 1/2),micro QR,
Data Matrix(ECC200, ECC000,050, 080, 100,140)."
1D "Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,
Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc."
Decoding Speed 300times/s
Barcode Sensitivity Tilt ±55°
Rotate ±360°
Deflection ±55°
Data Interface Port TTL or RS232
three trigger mode 1.Auto-trigger  2.RS232 trigger   3. IO signal trigger
Mechanical and Electric Performance
Size(Length x Width x Height) 70.3×50×22.4 mm
Weight 47g
Indicator Siren and LED light
Max.Power 1150mw
Working Voltage DC5V
Current Max.Curren 230ma
Working Current 100ma
Stand-by Current 50ma
Accessory List

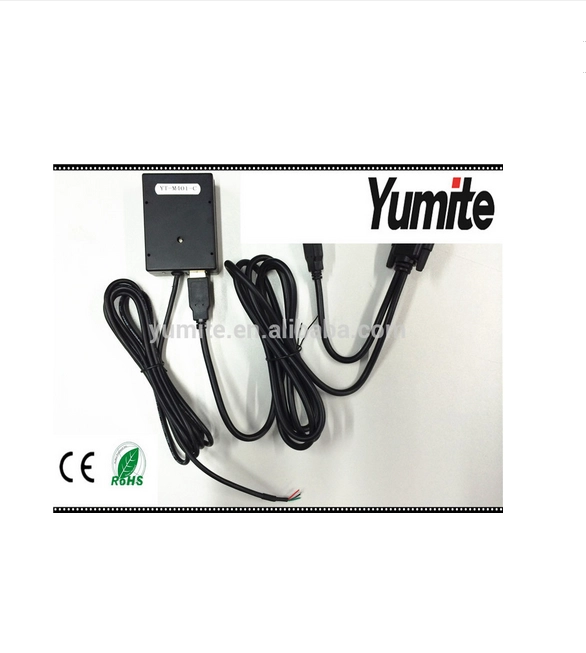

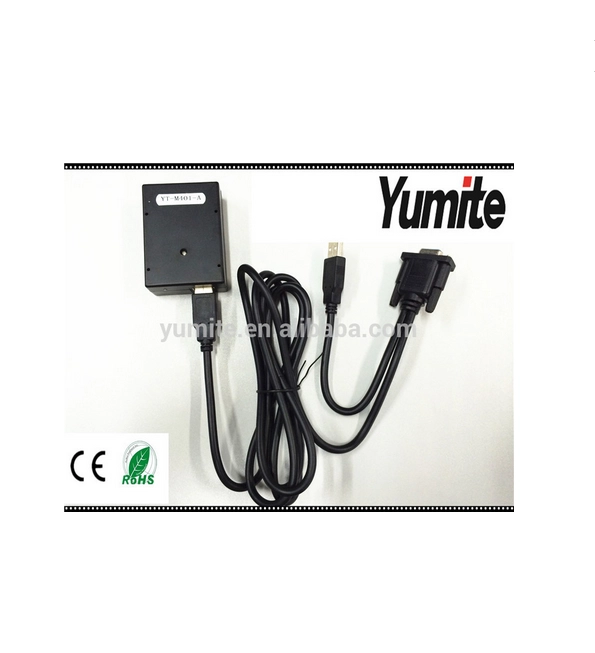

Data line RS232(1.8M)

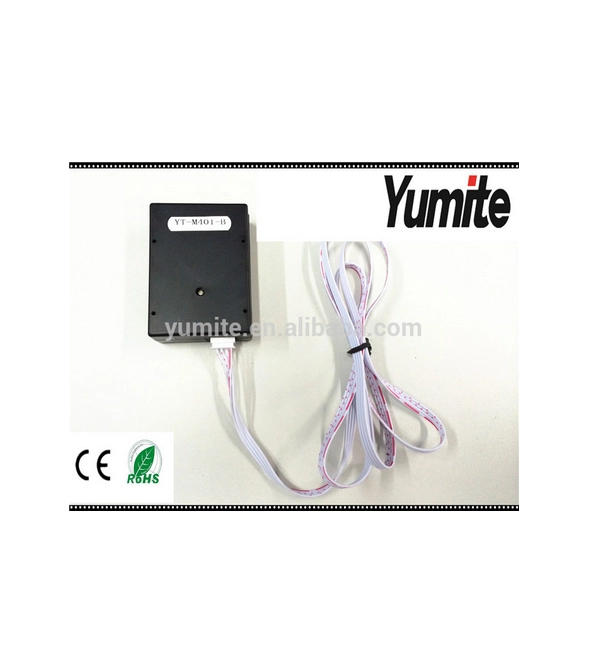

2.54mm flex cable(1.2m)
IO control cable
Operation Manual one
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature -25°C ~ 60°C
Relative Humidity 0 ~ 95%
Height Range 2m
IP Rating IP52

Certificates:
CE,RoHS,EMC,LVD,ISO9001:2008,ISO14001:2004
