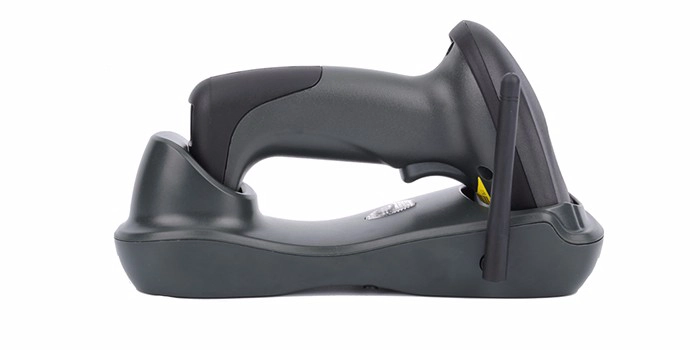

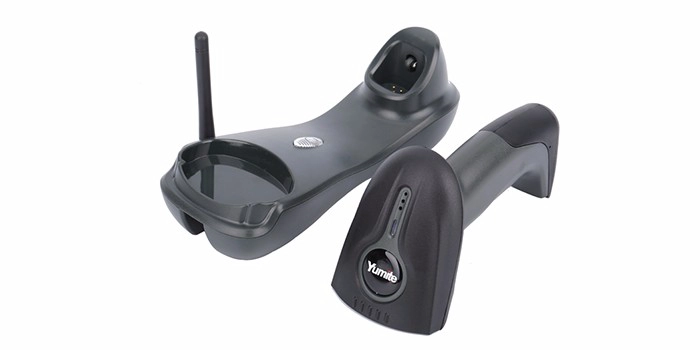

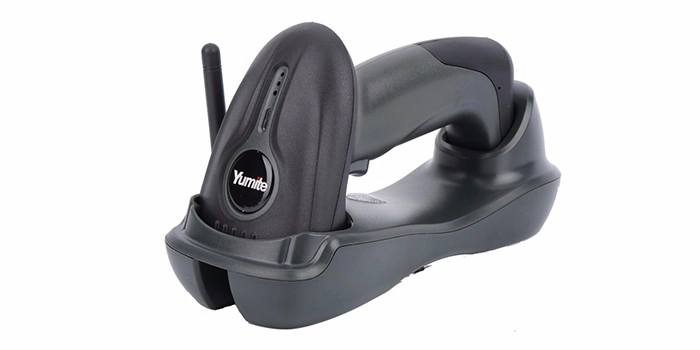

Yumite 433MHZ Long Range Wireless Charge Station CCD Barcode scanner YT-1503

  • Brand Name: Yumite
  • Model Number: YT-1503
  • Place of Origin: Guangdong, China (Mainland)
  • Wireless Transmitting Distanc: 300 - 400m
  • Optical Source: 620nm Visible red light diode
  • Imaging Sensor: CCD Resolution
  • Ratio: 2500 pixel
  • Image Resolution: ≥ 5mil
  • Minimum Contrast: ≥ 30%
  • Decoding Speed: 280times/second
  • Indicator: Siren and LED light

Yumite 433MHZ Long Range Wireless Charge Station CCD Barcode scanner YT-1503


description

Features

- 433Mhz wireless technology and unique CCD solution
- charged by base
- Better drop-resistance
- Longer transmitting distance 300-400M
- Faster speed 300times/second
- One to One pairing, easy setting
- Flicking Scanning and Auto Scanning and Continuous Scanning
- Large capacity 8MB, equal to save more than 300000 bar codes
- One to multi,multi to one, one to one mode
- Supporting customization
- Fully plug&play compliant
- Supporting Screen, fuzzy and imperfect bar codes

Applications

Supermarket, Retail, Healthcare, Logistics, Postal Communication, Government, Clothing industry, Power Industry, Hospital, Bookstore



specification
Wireless Transmitting Distance (without barrier) 300 - 400M
Infrared induction distance —―
Optical Source 620nm Visible red light diode
Imaging Sensor CCD
Image Resolution 2500Pixel
Reading Precision ≥ 5mil
Minimum Contrast ≥ 30%
Decoding Capacity Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar,  Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar, ect.
Decoding Speed 280times/second
Barcode Sensitivity Tilt ±55°
Rotate ±25°
Deflection ±75°
Data Interface RJ-45
Mechancial and Electric Performance
Size(Length x Width x Height) 210×84×117.5 mm
Weight 320g
Indicator Siren and LED light
Battery Capacity 600mah
Max.Power 750mw
Working Voltage DC5V
Current Max.Current 150ma
Working Current 90ma
Standby Current 68ma
Sleeping Current 3ua
Charging current 450ma
Accessory List
Data Cable Micro USB
—―
Wireless Reciver —―
CD —―
Opertation Manual 1
Charge Station 1
Environmental Parameter
Storage Temperature  -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Height Range 2M
IP Rating IP52
Certification
CE, RoHS, EMC, LVD, ISO9001:2008, ISO14001:2004
